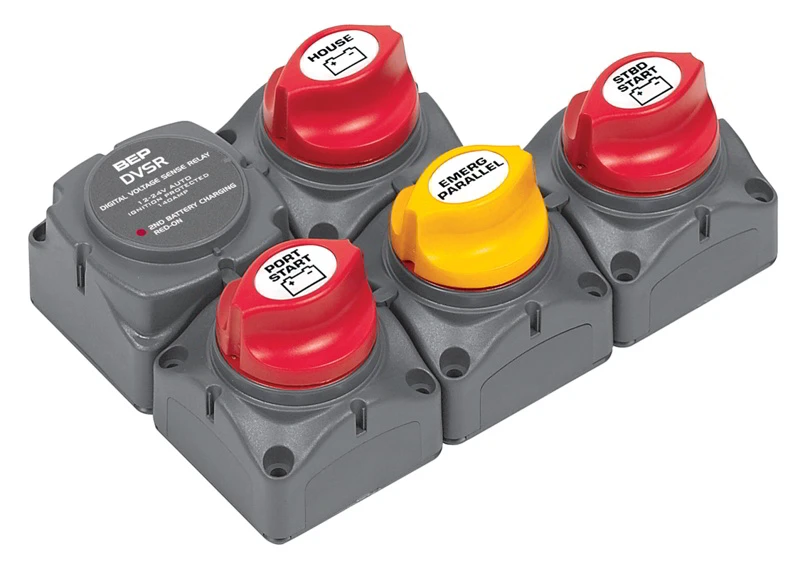

BEP Marine BEP Battery Distribution Cluster For Twin Inboard Engine With Three Battery Banks

The optimum battery management system.

The 718-140A-DVSR BEP Battery Distribution Cluster For Twin
Inboard Engine with Three Battery Banks is designed for
twin inboard systems when it is not practical to have both engine
alternators in parallel because of the types of regulators used on
these alternators. The house battery is charged from the port
engine when the VSR is engaged.

BEP Battery Distribution Cluster For Twin Inboard Engine
with Three Battery Banks Features:

• Contour lock system, allowing it to be locked together with
  other switches
• A control knob which cannot be removed whilst in the On or Off
  position, however can be removed by switching to an anti-clockwise
  45º position
• Removable rear cover insulating the rear terminals against any
  short circuits and ensures the switch meets ABYC requirements

BEP Battery Distribution Cluster For Twin Inboard Engine
with Three Battery Banks Specifications:

• Continuous rating: 275 Amps DC
• Intermittent rating: 455 Amps DC
• Cranking rating: 1250 Amps DC
• Voltage rating: 48 Volts DC
• Operation: On / Off
• Mounting: recessed or surface
• Termination stud size: 2 x 3/8” (10mm)

Note: This product is water resistant but is
NOT designed to be submerged.
