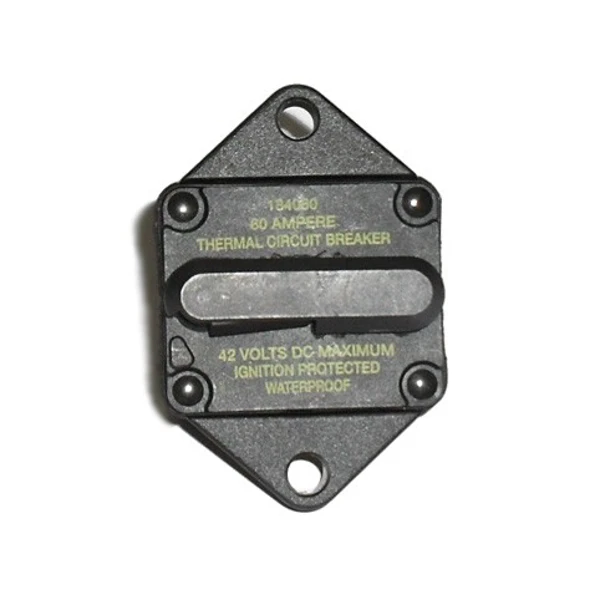

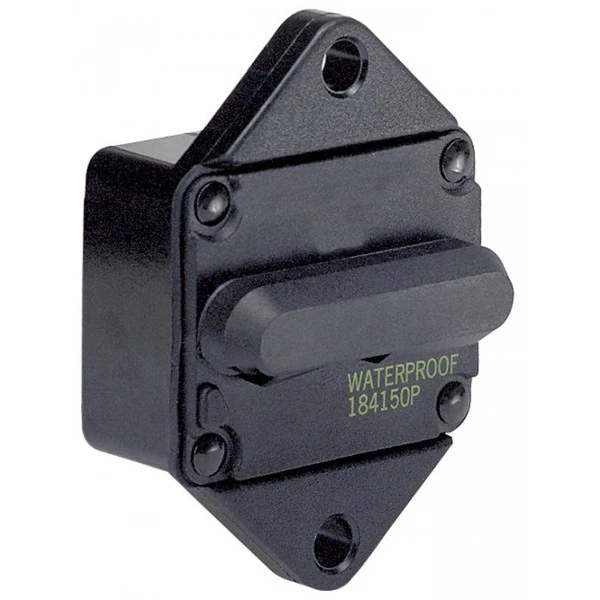

BEP Marine BEP Heavy Duty Manual Reset Breaker Panel Mount

The BEP Heavy Duty Manual Reset Breaker Panel
Mount is among the heavy-duty single pole thermal type
breakers from Marinco that are ideal for auxiliary and accessory
circuits, trucks, buses, RVs and marine applications, battery
chargers and DC audio systems. Series 184 and 185 are sealed for
engine compartment and bilge area applications. Stud insulators are
provided on covered units with F (Surface Mount) bases; tin plated
copper studs, brass rivets and stainless steel locking nuts.

BEP Heavy Duty Manual Reset Breaker Panel Mount
Specifications:

• Ratings: 30-150A; 30V DC, 3000A interrupt capacity
• Operating Temperature: -25 deg F (-32 deg C) to 180 deg F (82
  deg C)
• Storage Temperature: -30 deg F (-34 deg C) to 300 deg F (149
  deg C)
• Housing: Thermoset plastic; UL rated 94VO; 311 deg F (155 deg
  C)
• Mounting: Panel
• Terminal Stud Torque: 50 in-lb (5.6Nm) max
• Indicator: Series 184 & 185 have a unique reset mechanism
  providing visible indication of tripped condition
• Ingress Protection Rating: IP67
• Approvals: Complies with SAEJ1625, J1171 and UL1500 (Ignition
  protected) specifications
