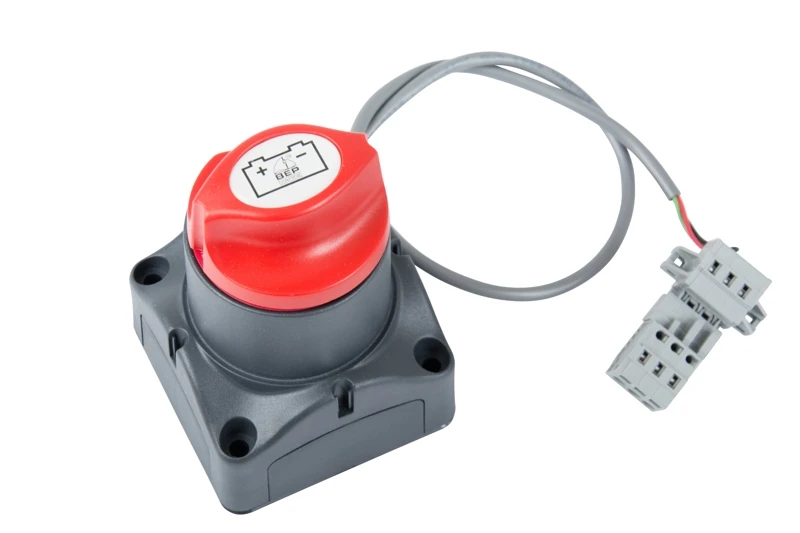

BEP Marine BEP Optimised Remote Battery Switch With Buzzer Option

Optimised for use with, or alongside CZone digital switching
systems, the 701-MDCZ is a further development of BEP proven 701-MD
motorized remote battery switches.

Features:

• Simplifies and speeds CZone installations. Positive activation
  allows direct wiring from CZone output modules instead of wiring a
  relay to convert to negative activation.
• Allows multiple remote switches to be connected to the same
  battery switch by using momentary positive remote activation e.g.
  connecting a wireless remote control, plus a switch on the
  dashboard
• Red wire output can directly drive a piezo buzzer, so ‘ON’ (2
  chirps) and ‘OFF’ (1 chirp) signals are sounded to acknowledge
  remote control activation
• Provides greater fail-safe reliability as battery switch
  remains in the same state even if remote control power/connections
  are lost
• 275A Continuous / 455A 5 minutes Intermittent / 1250A 10
  seconds Cranking (cable size to achieve ratings 70mm, 2/0, smaller
  cable size will reduce the Amp rating)
• Tested to UL1107 ignition protection, CE
• Tinned copper 10mm (3/8′) studs
• Stainless steel washers/nuts
• Fiber reinforced high temperature plastics
• Waterproof to IP66
• Removable knob allows isolation during servicing
• 3 removable sideplates for protection Note: Not suitable for
  emergency parallel applications
• Wago and Deutsch plug versions
• Note: Piezo buzzers that work directly with the 701-MDCZ
  switches are 54-27C4/DSP (OEM: 54-27C4) 85 dB and 54-35C2/DSP (OEM:
  54-35C2) 97 dB
