BEP Marine BEP Pro Installer 400A EZ-Mount Double Pole Battery Switch 12-48V DC

Safe and easy to install

An addition to BEP multi award winning Pro Installer EZ Mount
range, the BEP Pro Installer 400A EZ-Mount Double Pole
Battery Switch provides Double Pole On/Off functionality
so that both positive and negative battery terminals can be
isolated. Most commonly used on metal hulled craft, full isolation
ensures there is no risk of stray currents that may cause galvanic
corrosion, and also guarantees optimum safety during servicing or
mishap, for example with mining equipment. As easy as 1, 2, 3,
these revolutionary battery switches allow you to wire from the
front for the easiest surface mounting. With their shared
interconnection height, EZ-Mount battery switches ‘cluster’
directly with the Pro Installer Busbar Range, resulting in the
fastest, most compact installations. Optimised cable access makes
installation a breeze.

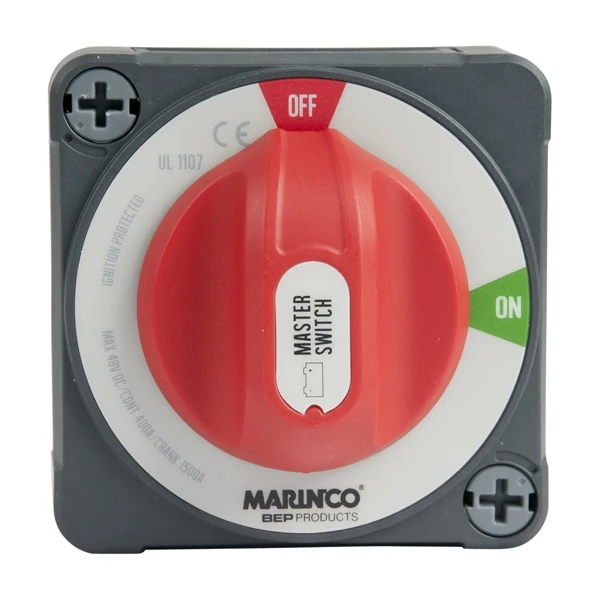

BEP Pro Installer 400A EZ-Mount Double Pole Battery Switch
Features:

• Tested to UL1107 ignition protection, CE
• Tinned copper 10 mm (3/8 in) studs
• Stainless steel washers and nuts
• Fiber reinforced plastics
• 400A Continuous / 600A 5 minutes Intermittent / 1500A 10
  seconds Cranking (cable size to achieve ratings 120mm, 4/0, smaller
  cable size will reduce the Amp rating)
• Waterproof to IP67
• Same interconnection height as Pro Installer
• Removable knob allows isolation during servicing
• 3 removable side plates for protection
• Industry standard 3.85 x 3.85 inch footprint
• Surface mount only
• Each Pro Installer battery switch is fully tested for pressure
  sealing, rotation force and electrically load tested
• 4x M10 (3/8 inch) Connection Studs
• Module Dimensions LxWxH: 98 x 98 x 93mm (3.85 x 3.85 x 3.64
  inch)
• 12-48V DC
