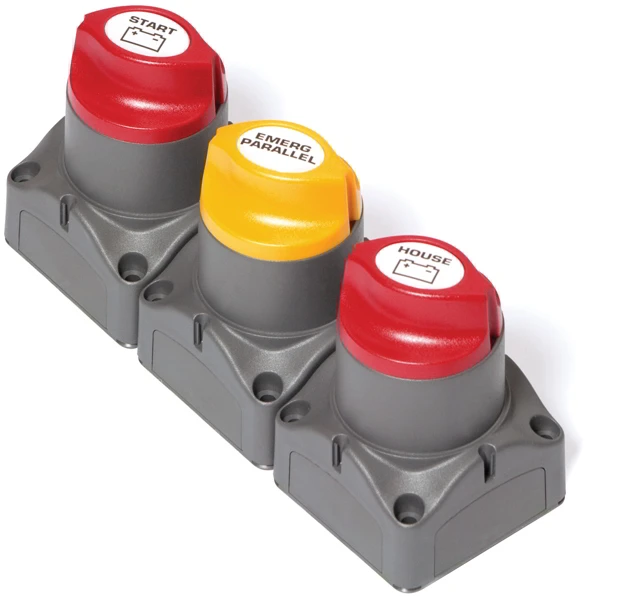

BEP Marine BEP Remote Battery Management Cluster For Single Engine

The BEP Remote Battery Management Cluster For Single
Engine offers all features of motorized battery switches
and Motorized VSRs in one kit. Clusters are surface mount, and can
be rearranged to meet specific needs, such as port and starboard
configurations and can be combined with other battery distribution
products. Available in single, dual and triple engine
configurations.

BEP Remote Battery Management Cluster For Single Engine
Features:

• Remote operation (easier access for battery control)
• Battery switch can be mounted alongside battery, reducing cable
  lengths and cable size to starter motor
• Reduced labour for fitting, due to shorter battery cabling
  (cost saving)
• Manual override option to meet CE requirements
• LED status identification for remote control switch
• Same capacity/specification and mounting options as standard
  BEP battery switches
• Utilizes same interchangeable labelling system as BEP battery
  switch

BEP Remote Battery Management Cluster For Single Engine
Specifications:

• Continuous rating: 275 Amps DC
• Intermittent rating: 455 Amps DC
• Cranking rating: 1250 Amps DC
• Maximum Voltage: 32 Volts DC
• Operation: Manual On/Off
• Mounting: Recessed or surface
• Auto operating range 8 to 30 Volts DC
• Ignition protected
• Stud Size: 2 x 10mm(3/8”)
• Tin plated copper studs and nuts
• Power draw: Switch in off position: 15mA
• Recommended Maximum Cable Size: 50mm
