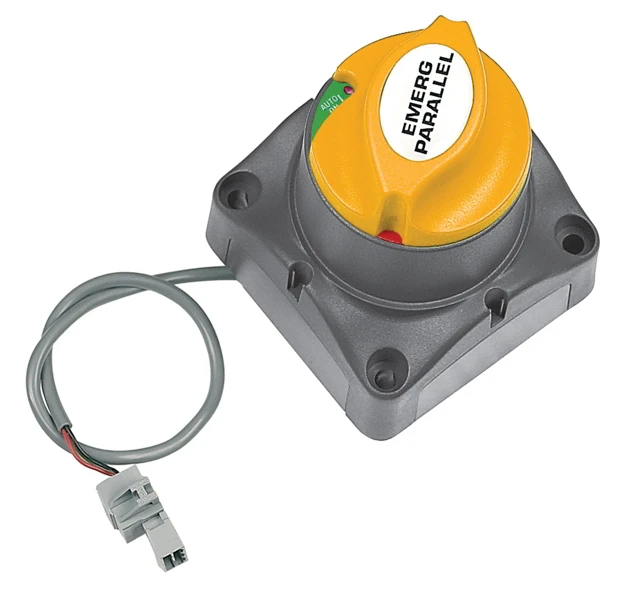

BEP Marine BEP Remotely Activated Emergency Parallel Switch 12/24V 275A/1250A

Suitable for emergency starting of engines

The BEP Remotely Activated Emergency Parallel
Switch offers remotely activated, high current, emergency
parallel connection suitable for emergency starting of engines (up
to 1250 Amps for 10 seconds). The emergency parallel functionality
is conveniently operated via a momentary button on the dash, which
when activated, will parallel the batteries for 10 minutes. Once
the 10 minutes has passed, the switch turns off, removing the risk
of start batteries becoming flattened following a parallel switch
being inadvertently left on.

Designed and constructed for the harsh marine environment,
utilising tinned copper conductors, stainless steel nuts, and high
temperature, fibre reinforced plastics to ensure longevity. The
units are ignition protected, provide On/Off switching operation,
and may be recessed or surface mounted. Note: For automated
charging of the second battery bank this same 10 minute emergency
parallel functionality is also available on the 701-MDVS Voltage
Sensitive Switches.

BEP Remotely Activated Emergency Parallel Switch
Features:

• Manual override option
• 10 minute remotely activated emergency parallel function (no
  voltage sensitive function)
• 12/24 volt operation (both battery banks must be same
  voltage)

BEP Remotely Activated Emergency Parallel Switch
Specifications:

• Part number: 80-701-0018-00
• DC Voltage: 12/24
• RoHS Compliant (Restriction of Hazardous Substances Directive)
  °: Contact Compliance
• Continuous Rating: 275
• Engages (V DC): Emergency Parallel Only
• Disengages (V DC): Emergency Parallel Only
