BEP Marine Dual Battery Charging Cluster For Single Engines

Dual charging made easy

The BEP Marine Dual Battery Charging Cluster is
the optimum battery management system for your single engine boat.
This dual battery charging cluster offers a number of unique
features. The highlights being the contour lock system that allows
it to be locked together with other switches. With a control knob,
it can’t easily be removed while in the On or Off position. You can
remove it, however, by switching to an anti-clockwise 45-degree
position. Also, the BEP Marine Dual Battery Charging
Cluster has a removable rear cover that insulates the rear
terminals against any short circuits and ensures that the switch
meets ABYC requirements.

The BEP Marine Dual Battery Charging comes with
dedicated battery switches for each bank and a 710-125A voltage
sensitive relay (VSR). The VSR allows for two batteries to be
charged at the same time. When the engine is started, and the start
battery reaches 13.7 volts, the relay closes, combining the battery
banks (start and house) and allowing them to be charged
simultaneously. When the engine is stopped and the voltage drops to
12.8 volts, the relay will open, separating the batteries.

This system eliminates the possibility of draining the wrong
battery and protects sensitive electrical equipment powered from
the house battery from harmful engine start up spikes. The
BEP Marine Dual Battery Charging Cluster cluster
is designed for single outboard or inboard systems on power or
sailboats with an alternator size up to 100A.

BEP Marine Dual Battery Charging Cluster for Single Engines
Features:

• Complete battery management system
• Dual battery charging made easy
• Incorporates Digital VSR
• Fully automatic – no more flat start batteries
• Protects electronics from harmful energy start spikes
• Easy replacement for battery selector switch

BEP Marine Dual Battery Charging Cluster for Single Engines
Specifications:

• Dual Battery charging clusters
• For use on charging systems under 125A
• Continuous rating: 275 Amps DC
• Intermittent rating: 455 Amps DC
• Cranking rating: 1250 Amps DC
• Voltage rating: 48 Volts DC
• Operation: On / Off
• Mounting: recessed or surface
• Termination stud size: 2 x 3/8” (10mm)

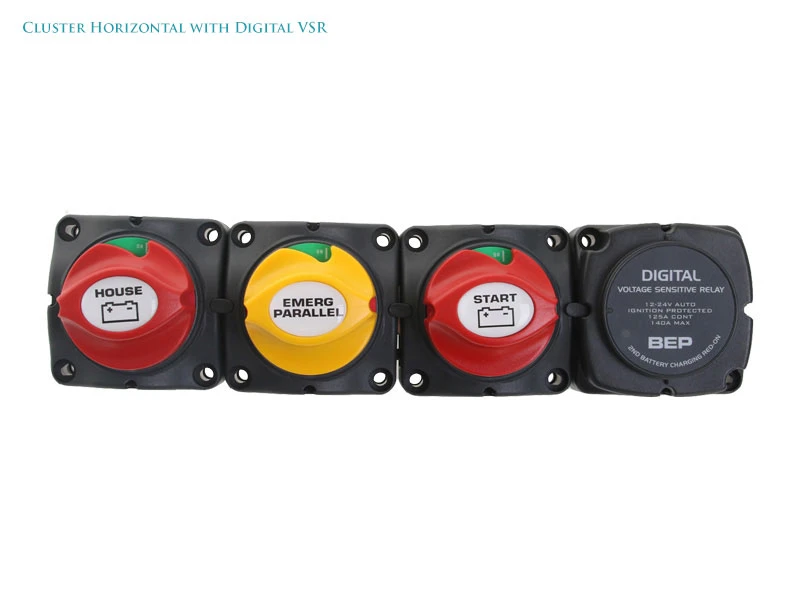

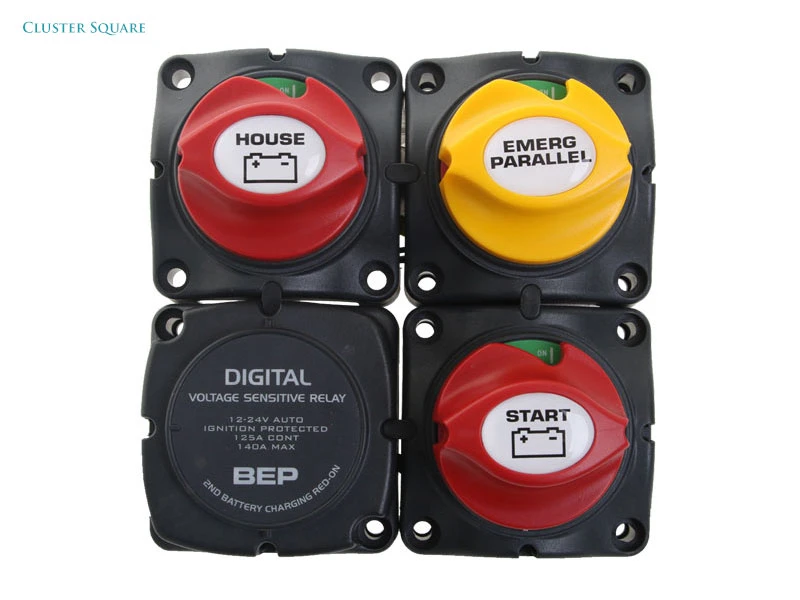

• Dimensions: 276L X 69W x 75H mm (vertical & horizontal) ; 136L
  X 136W x 75H mm (square)
