BEP Marine Heavy Duty Distribution Bus

Heavy duty busbar

The BEP Marine Heavy Duty Distribution Bus allows
for multiple terminations. It can take loads from heavy-duty
negative or positive connections and starter circuits. Each bus bar
features contour lock mouldings for easy grouping. The BEP 3 Way
Busbar 500Amp model features a taller cover to support more bulky
cables and lugs. All models built to meet ABYC standards for
exposed terminals.

BEP Marine Heavy Duty Distribution Bus
Features:

• Heavy-duty
• Conveniently sized
• With contour lock mouldings
• Meets ABYC standards for exposed terminals

BEP Marine Heavy Duty Busbar Specifications:

	Stud Size	Dimensions	Current Rating

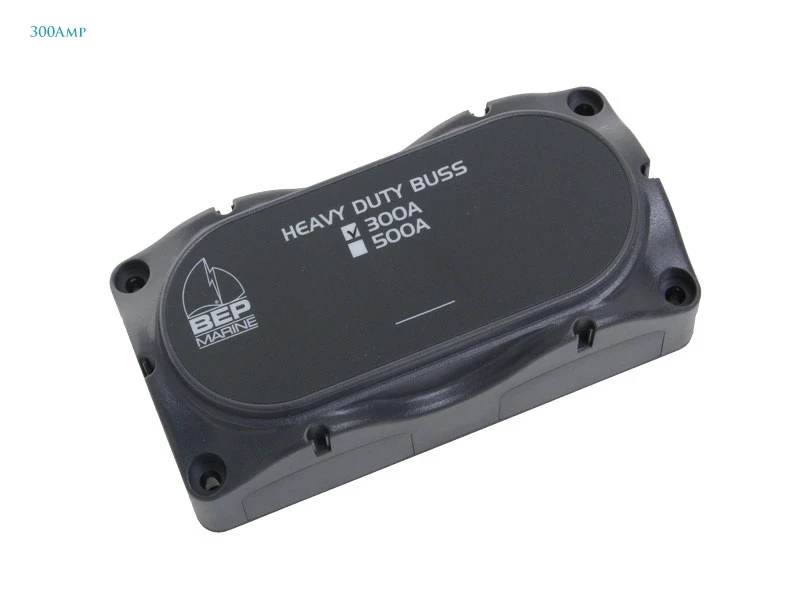

BEP 4 Way Busbar 300Amp	4mm x 10mm	138 mm x 69mm x 50mm	300Amp

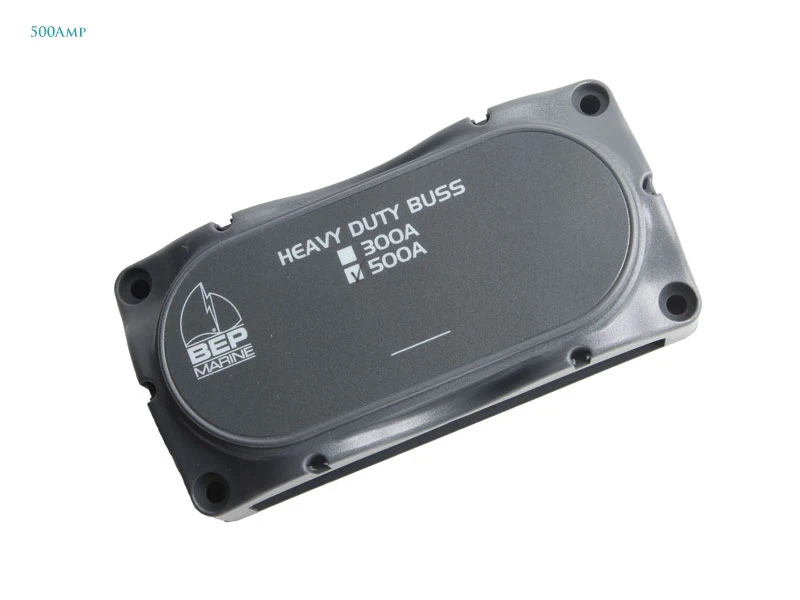

BEP 3 Way Busbar 500Amp	3mm x 10mm	138 mm x 69mm x 75mm	500Amp
