BEP Marine Master Battery Switch

Ideal for isolating your battery

This BEP Master Battery Switch offers a number of
unique features. The highlights being the patented contour lock
system, allowing it to be a stand-alone unit, or locked together
with other switches. The 701 also features a control knob which
cannot be removed whilst in the ON or OFF position, however, can be
removed by switching to an anti-clockwise 45-degree position. The
control knob comes with an interchangeable labelling system
allowing a full range of applications.

The BEP Master Battery Switch also have three removable
side plates for access of up to 1/0 cables plus a rear
cover insulating the rear terminals against any short circuits.
This ensures the switch meets ABYC requirements. This batter switch
can be either surface or recess mounted.

BEP 701 Master Battery Switch Features:

• Patented contour lock system
• Comes with control knob with interchangeable labelling system
  allowing a full range of applications
• 3 x removable side plates for access of up to 1/0
  cables
• Ideal for Single Battery Bank installations
• Rear cover insulating the rear terminals against any short
  circuits
• Meets ABYC requirements
• Can be surface or recess mounted

BEP 701 Master Battery Switch Specifications:

• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking (Peak) Rating: 1250 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On/Off
• Mounting: Recessed or Surface
• Ignition protected
• Termination Stud Size:
• 2 x 10 mm (3/8 inch)

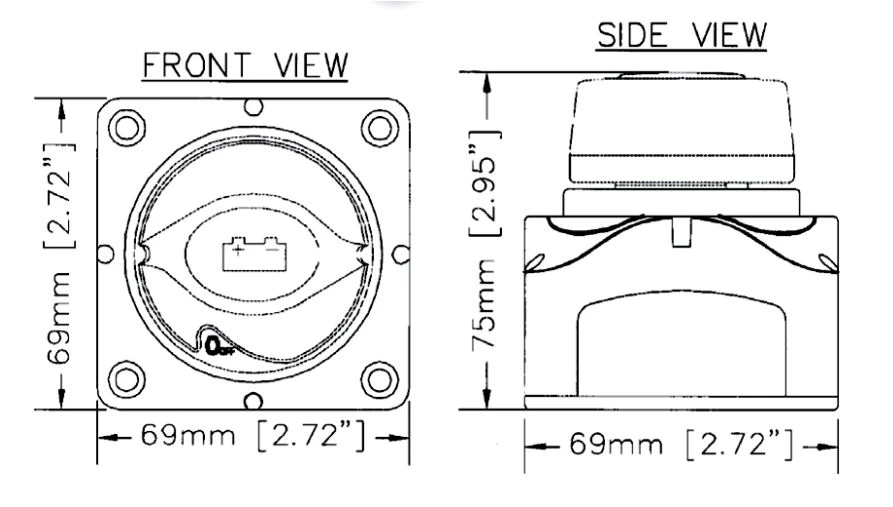

• Dimensions: 69 x 69 x 75h mm(2.75 x 2.75 x 3h inches)
• Tin plated copper studs and nuts
