BEP Marine Mini Battery Selector Switch

The most compact battery bank selector switch available

The BEP Mini Battery Selector Switch is the most
compact selector switch available on the market. Housed in the same
dimensions as the 701, and includes the same
removable side plates and back cover.

While BEP Marine primarily recommends isolated
battery systems as outlined with distribution clusters, the BEP
Mini Battery Selector Switch offers a simple economical way of
separating two batteries.

BEP 701S Mini Battery Selector Switch
Specifications:

• Continuous Rating: 200 Amps DC
• Intermittent Rating: 300 Amps DC
• Cranking (Peak) Rating: 1000 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: Selector 1-2-Both_off
• Mounting: Recessed or surface
• Dual Battery Bank
• Termination Stud Size: 3 x 5/16″
• Tin Plated copper studs and nuts
• Ignition Protected

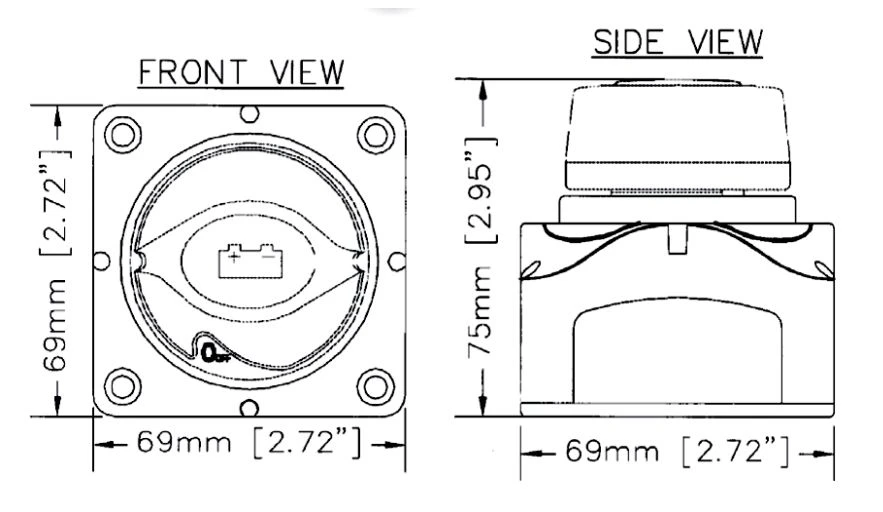

• Dimensions: 69 x 69 x 75H mm (2.75 x 2.75 x 3in)

Installation Instructions
