BEP Marine Remote Operated Battery Switch 275Amp

Ideal for remote isolation

Due to the increased load requirements and large increases in the
cost of copper battery cable, this BEP Marine Remote
Operated Battery Switch allows you to install the battery
switch very close to the battery, reducing cable lengths to starter
motor. They are also ideal for remote isolation of bow
thrusters.

BEP Marine Remote Operated Battery Switch 275Amp
Features:

• Remote operation
• Battery switch can be mounted alongside battery, reducing cable
  lengths and cable sizes to starter motor. (Large cost saving in
  copper cables)
• Reduced installation labour, due to shorter battery cable
  runs
• Manual override option to meet CE requirements
• Power Draw: Switch off: 12mA. Switch on: 15 mA, switch
  operating 120 mA for 3 seconds @ 12 v nominal
• LED status identification for remote control switch
• Same capacities/specifications and mounting options as standard
  BEP battery switches
• Uses same interchangeable labelling system as BEP battery
  switches

BEP Marine Remote Operated Battery Switch 275Amp Specifications:

• Rating: 275 Amps (Continuous), 455 Amps (Intermittent), 1250
  (Cranking)
• Voltage: 9.5 – 32
• Function: On/Off
• Stud Size Studs x (mm/in): 2 x (10 / 3/8)
• Dimensions (in): 2.7 x 2.7 x 4 (L x W x H)

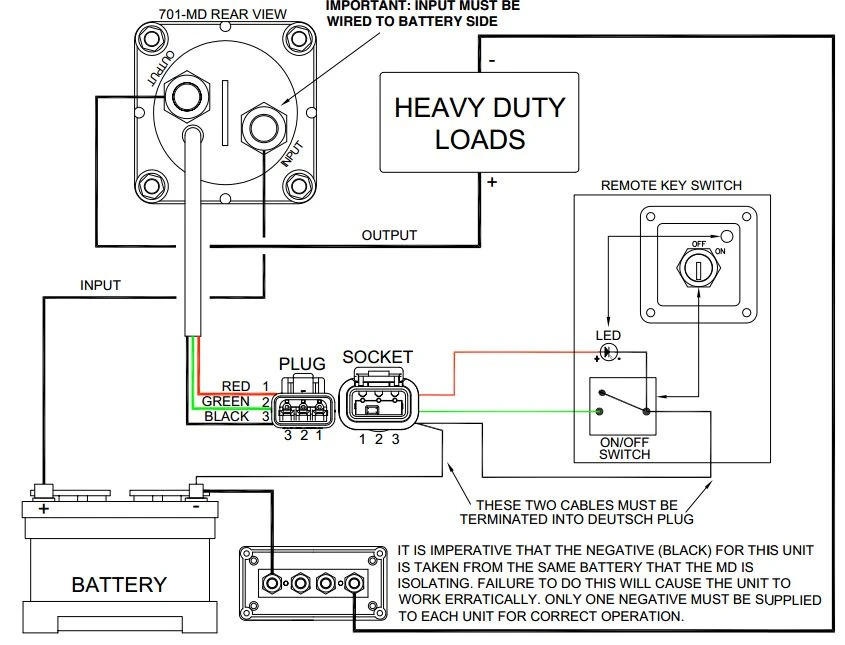

Operating and Installation Instructions (Deutsch Pug)

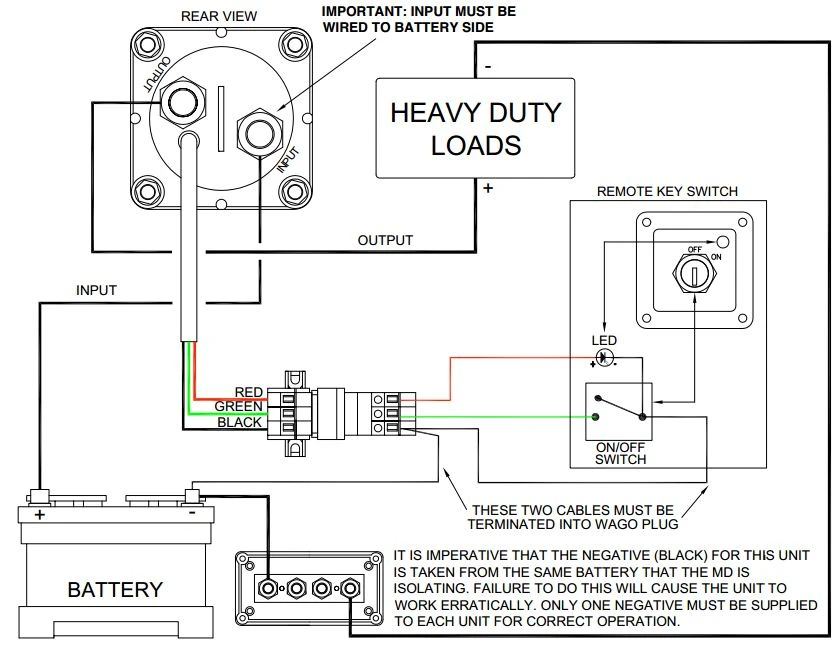

Operation and Installation Instruction (Wago Plug)
