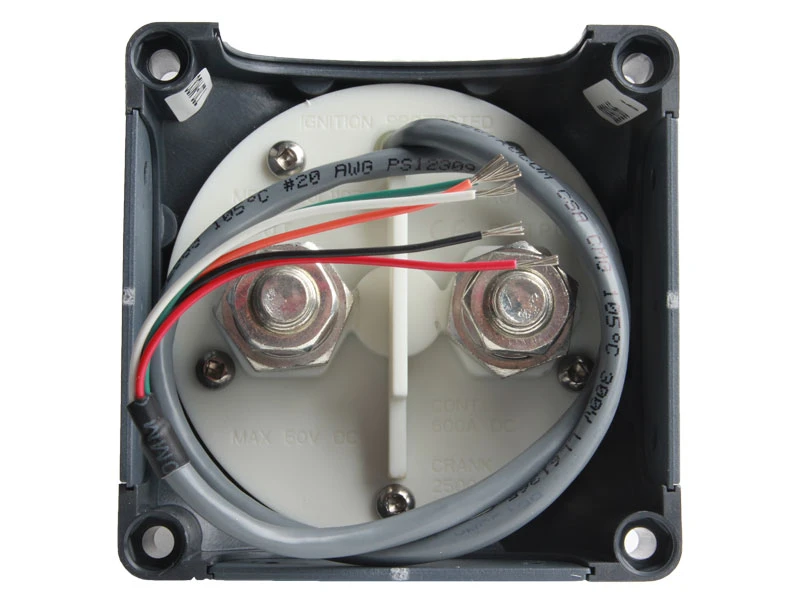

BEP Marine Remote Operated Battery Switch 500Amp

Motorised battery switch

The BEP Marine Remote Operated Battery Switch has
the same mechanism as the well-proven BEP 720 battery switch. The
essential difference being the switching action has been motorised.
This permits remote switching of battery banks from anywhere on the
boat.

A typical installation is a key operated switch at the helm station
and the motorised battery switch installed as close as practical to
the battery bank. Apart from the convenience of such an
installation, this arrangement permits much shorter cable runs to
starter motors and other high current applications such as bow
thrusters and inverters. As a result voltage drop and use of heavy
cable has been kept to minimum.

Due to the increased load requirements and large increases in the
cost of copper battery cable, the BEP Marine Remote
Operated Battery Switch allows you to install the battery
switch very close to the battery, reducing cable lengths to starter
motor. They are also ideal for remote isolation of bow
thrusters.

BEP Marine Remote Operated Battery Switch 500Amp
Features:

• Remote operation
• Battery switch can be mounted alongside battery
• Reduced installation labour, due to shorter battery cable
  runs
• Manual override option to meet CE requirements
• LED status identification for remote control switch
• Same capacities/specifications and mounting options as standard
  BEP battery switches
• Uses same interchangeable labelling system as BEP battery
  switches

BEP Marine Remote Operated Battery Switch User Manual
